Acube Graphical User Interface (Server/Client) Tool for developing and running algorithms on AiOnIc Processors (FPGA included).
AGTSAiOnIc: Server running as a background process on Linux Hosts.
AGTCAiOnIc: Graphical client running on Windows, Mac, Linux PC clients where users can develop complex algorithms using drag/drop/connect plugins and code and transmit to AGTSAiOnIc server to run them.

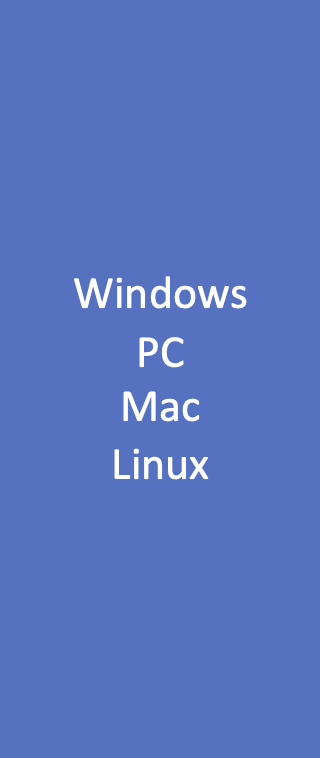

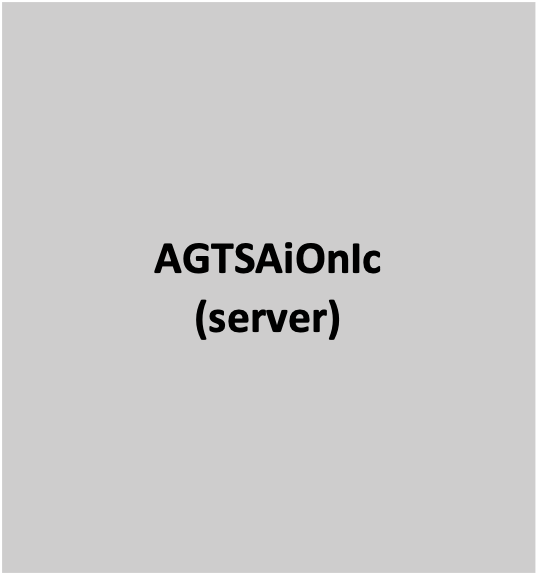

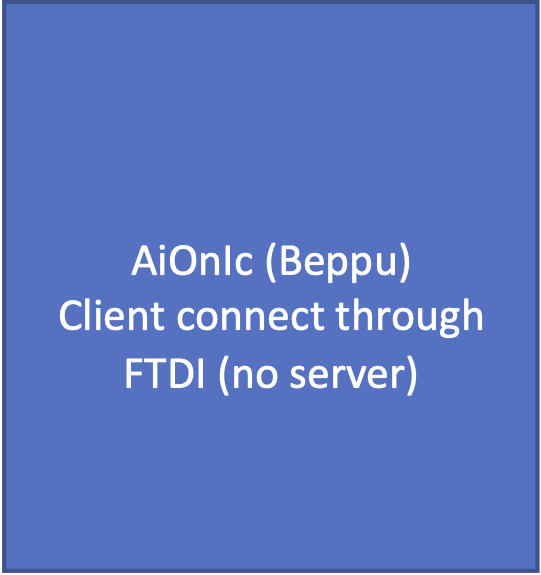

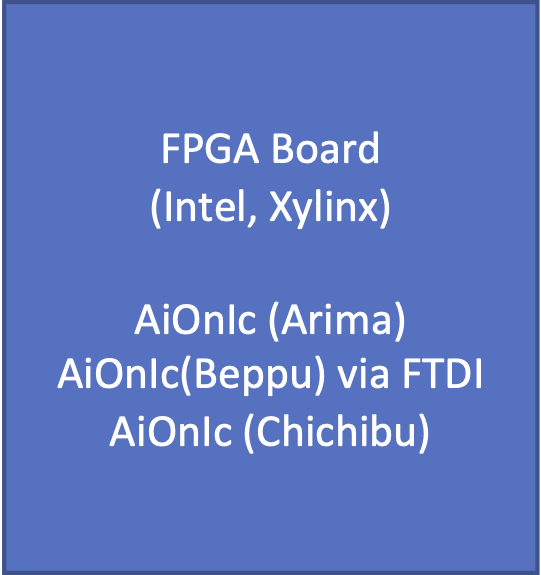

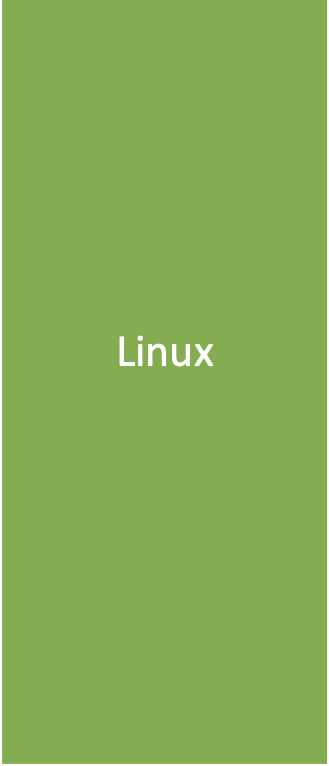

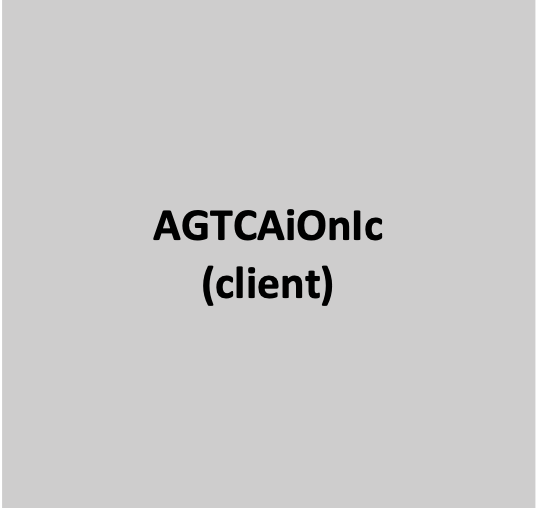

Overview of the system as below.
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
AGTCAiOnIc:
Some notable features

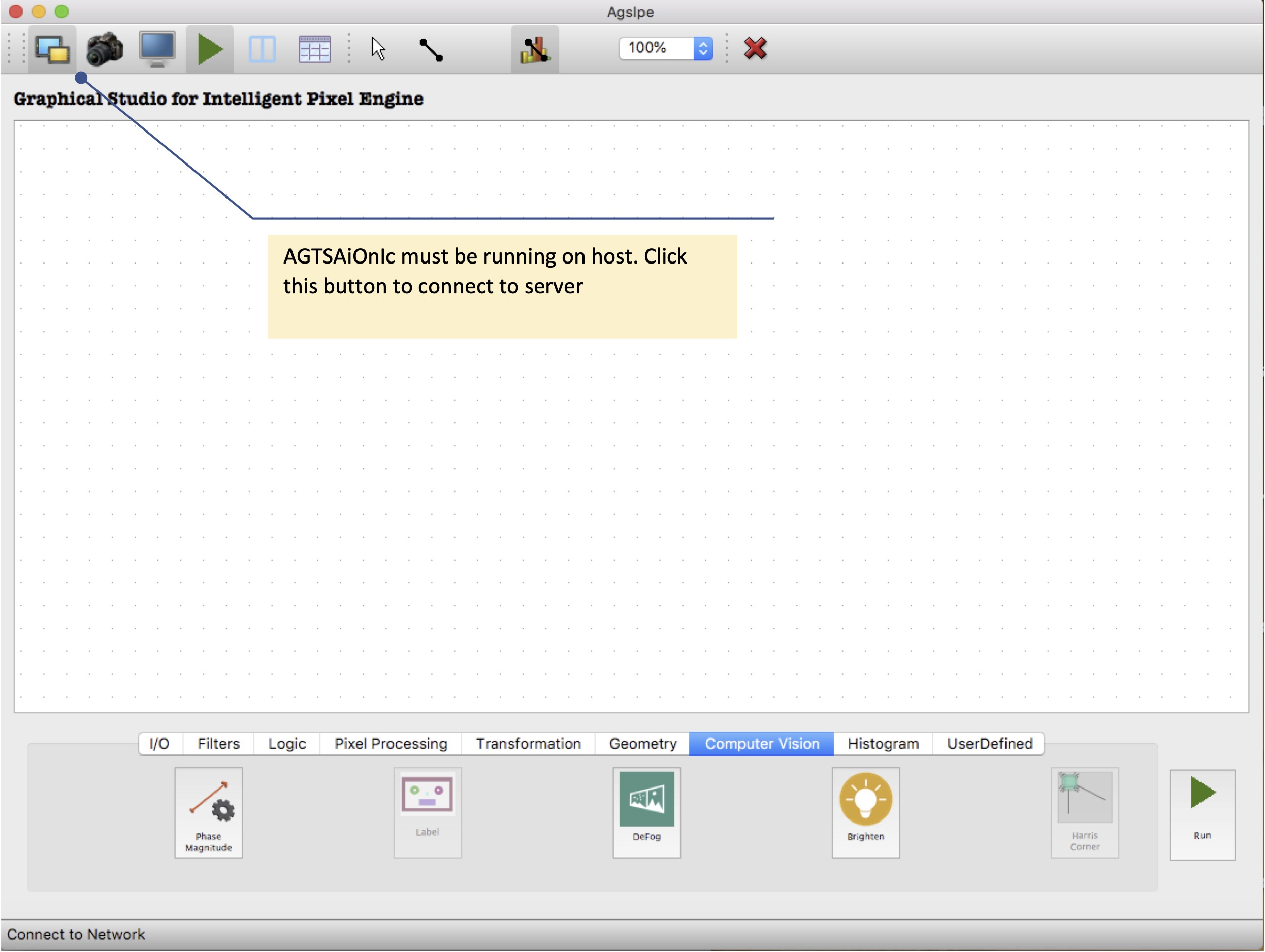

![]() | AGTCAiOnIc Connect to Server Initial Screen |

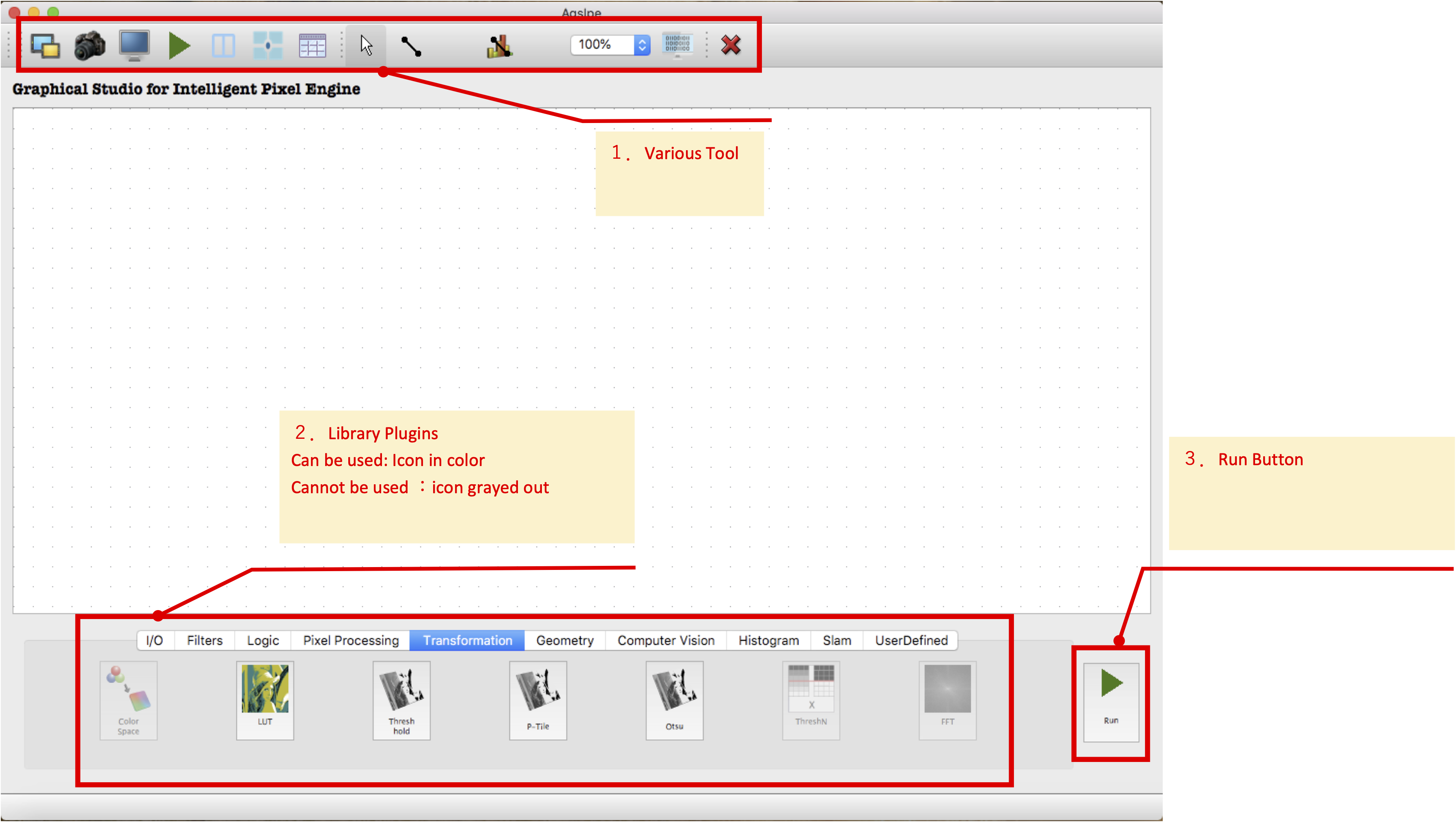

![]() | AGTCAiOnIc Tools and Plugins to use to develop Algorithms (Scenarios) |

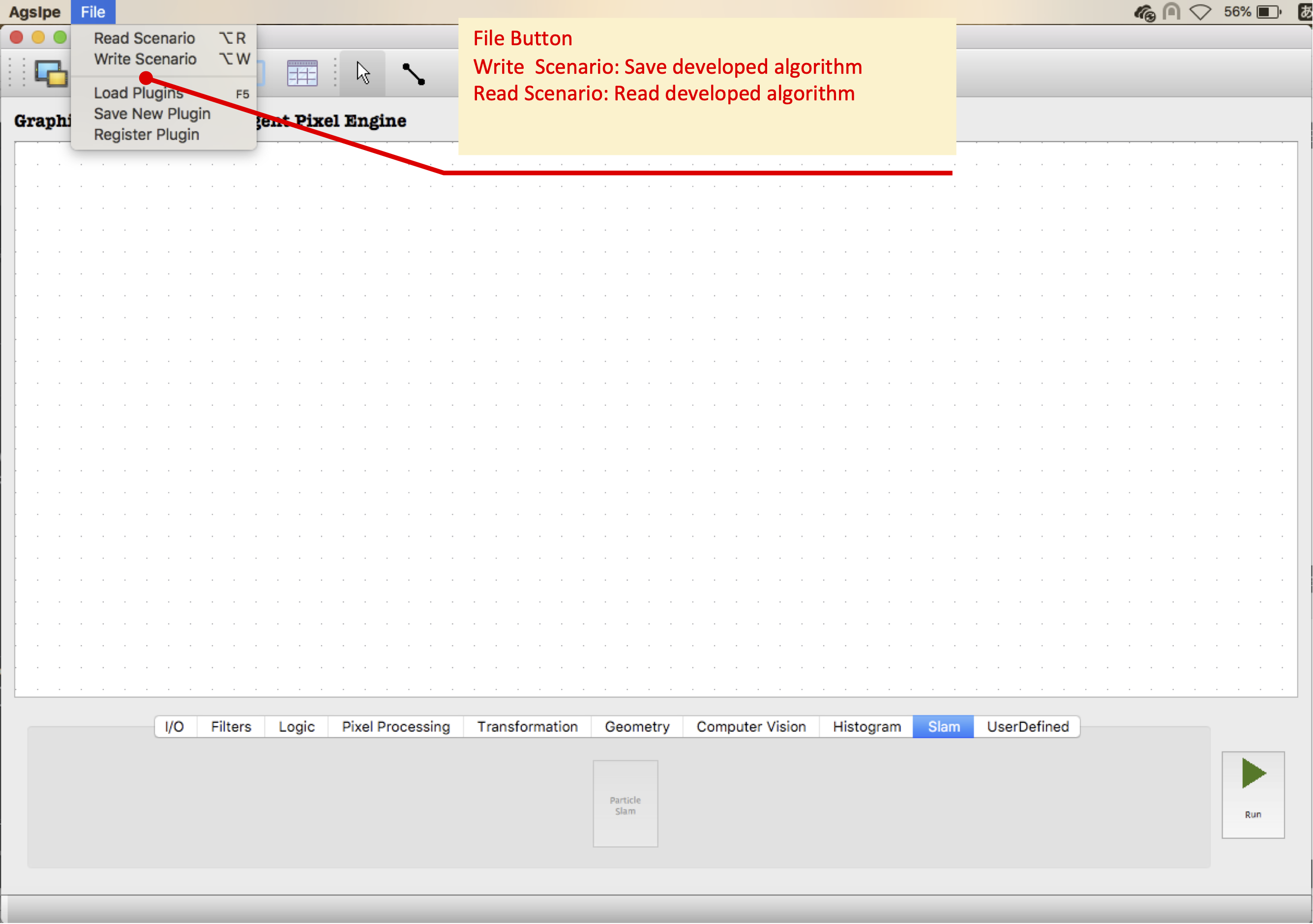

![]() | AGTCAiOnIc Read/Write Scenarios to File |

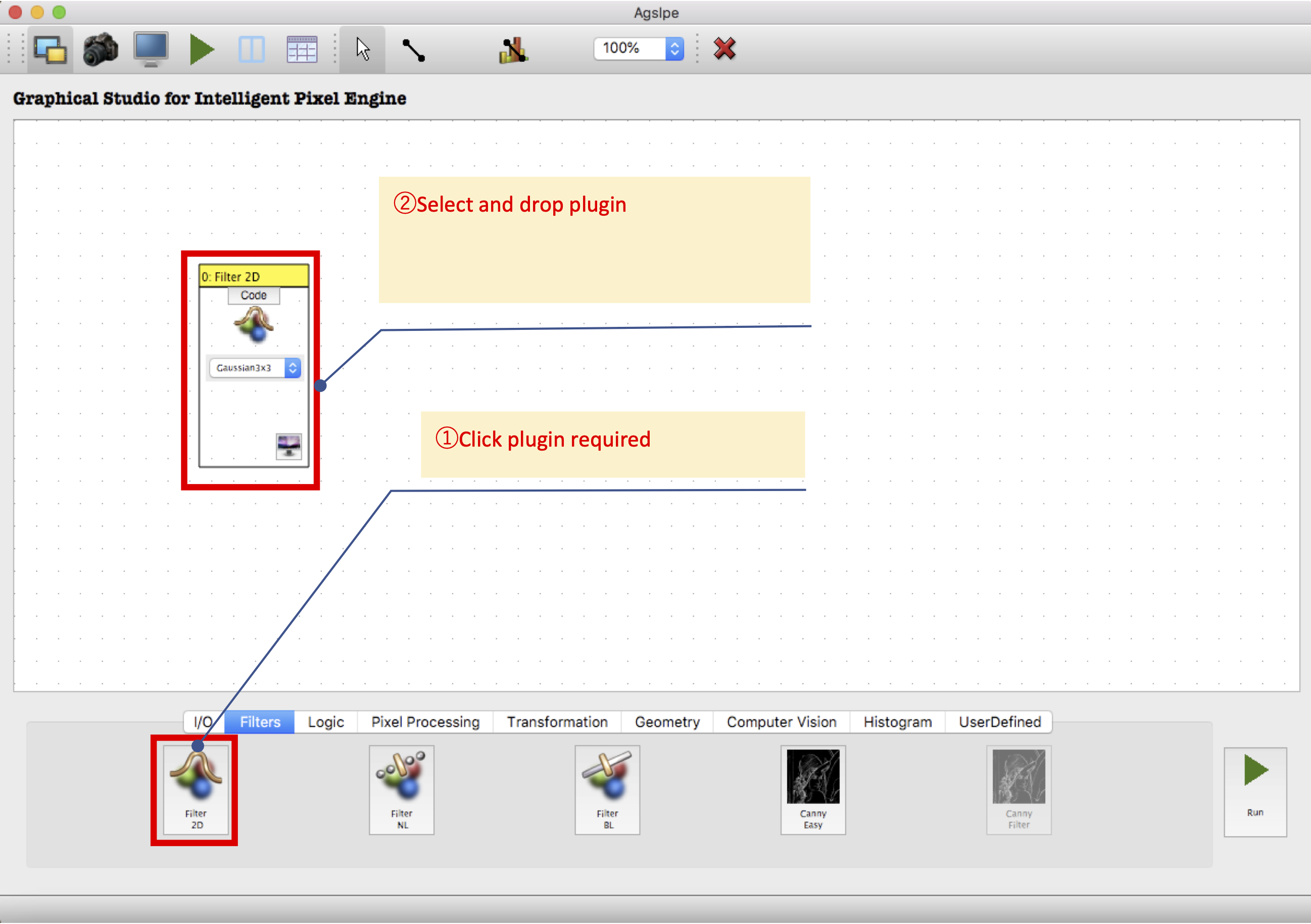

![]() | AGTCAiOnIc Load Plugins Click and Drop Plugins |

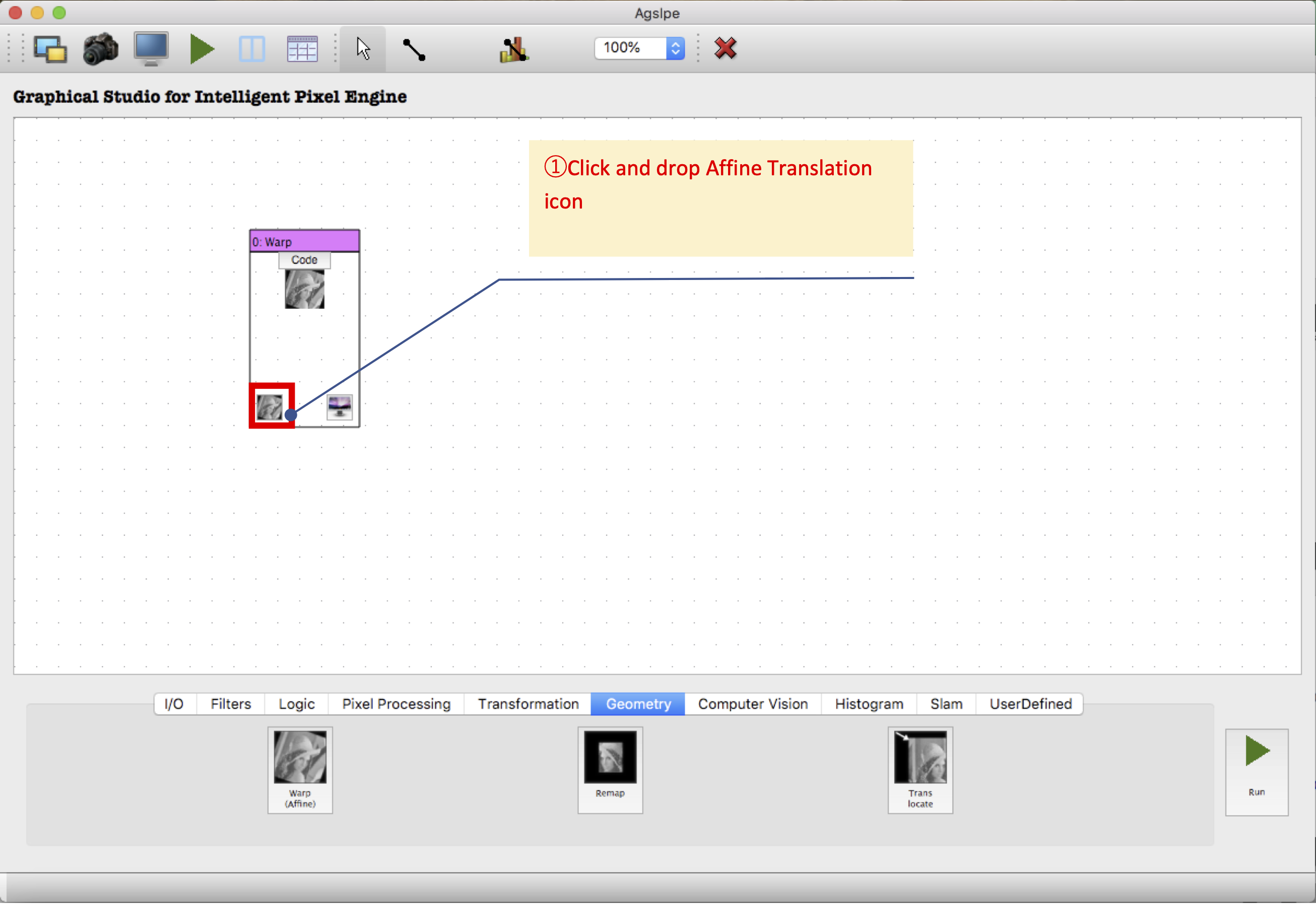

![]() | AGTCAiOnIc Affine Transform Example Click/Drop Affine Icon on Whiteboard |

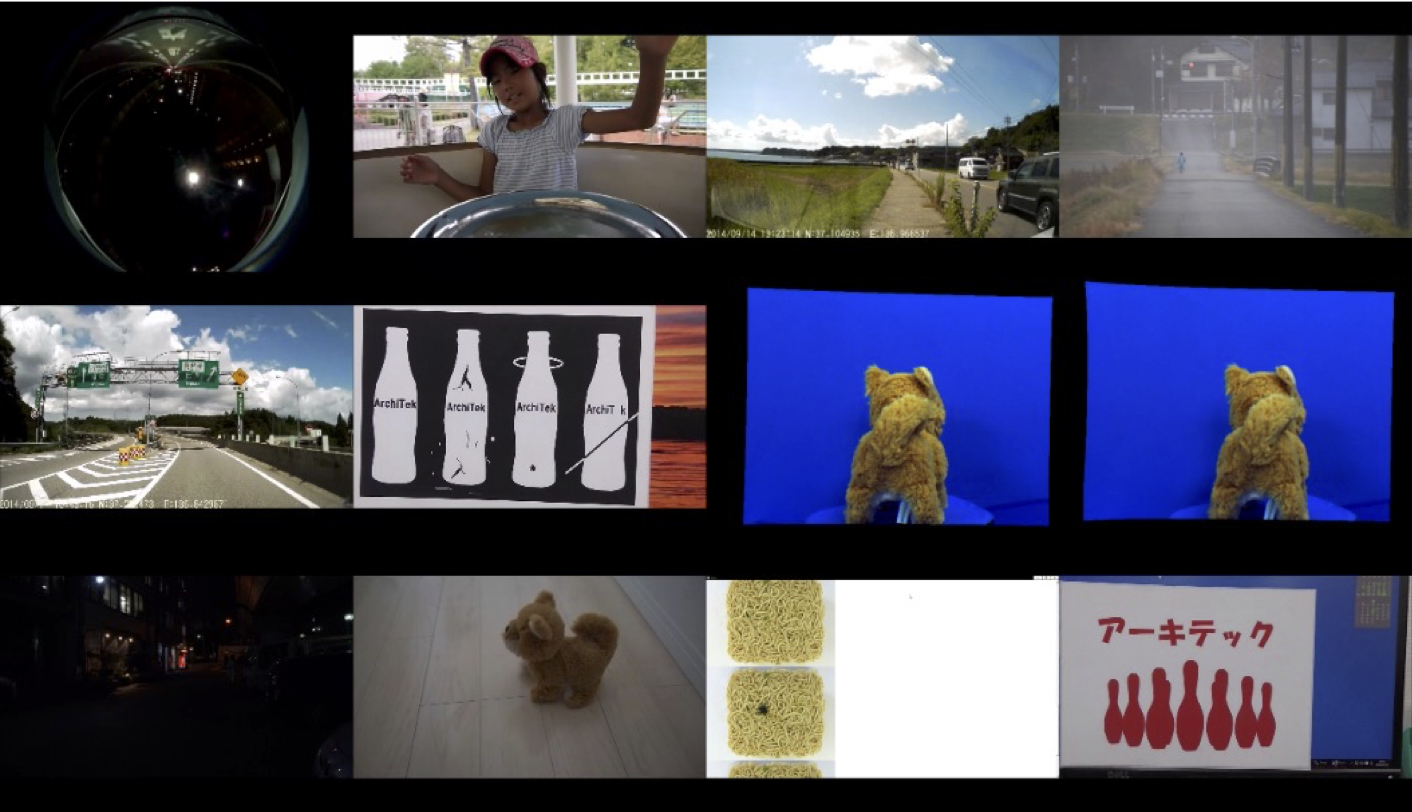

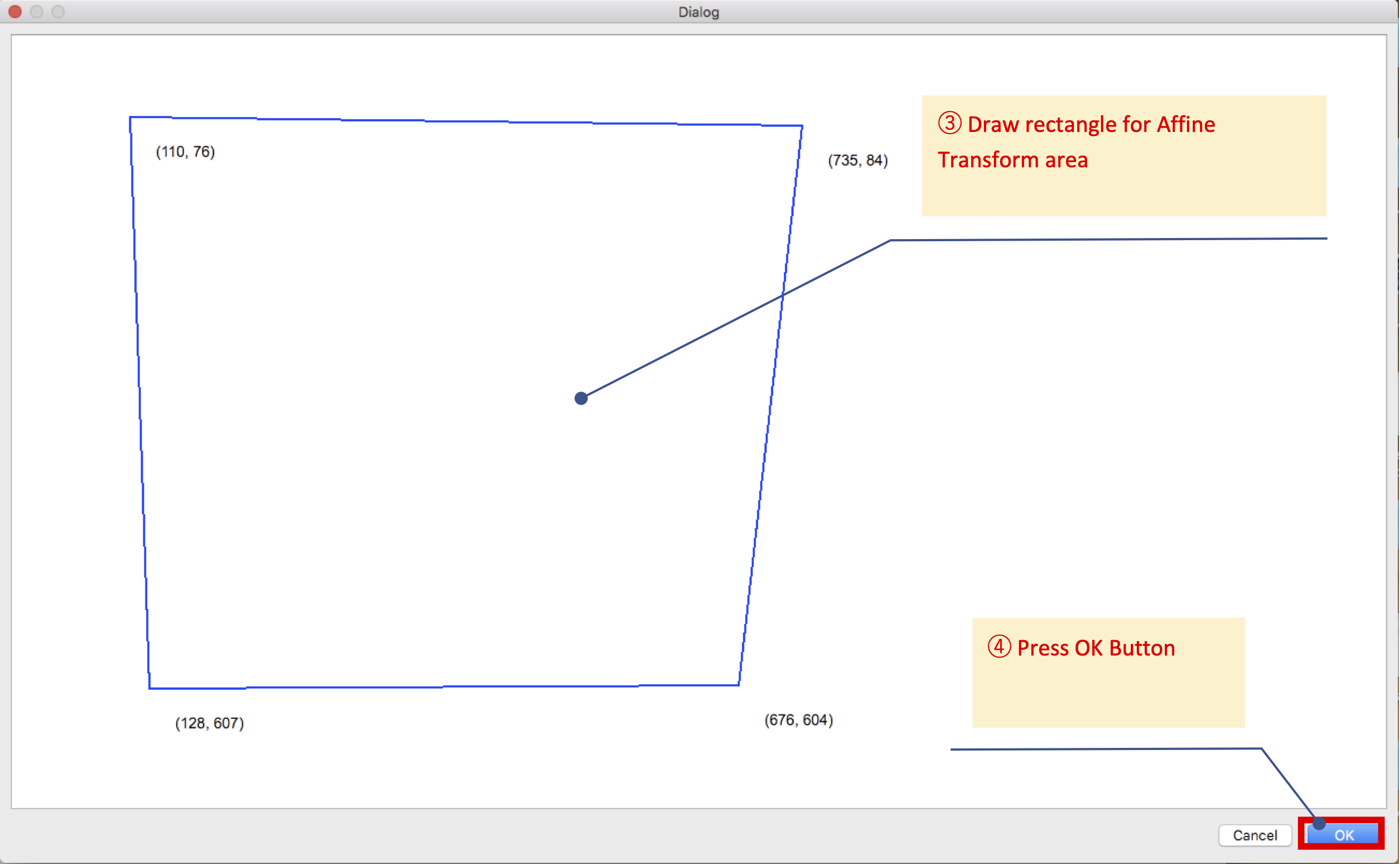

![]() | AGTCAiOnIc Determine the area to clip for Affine Transform |

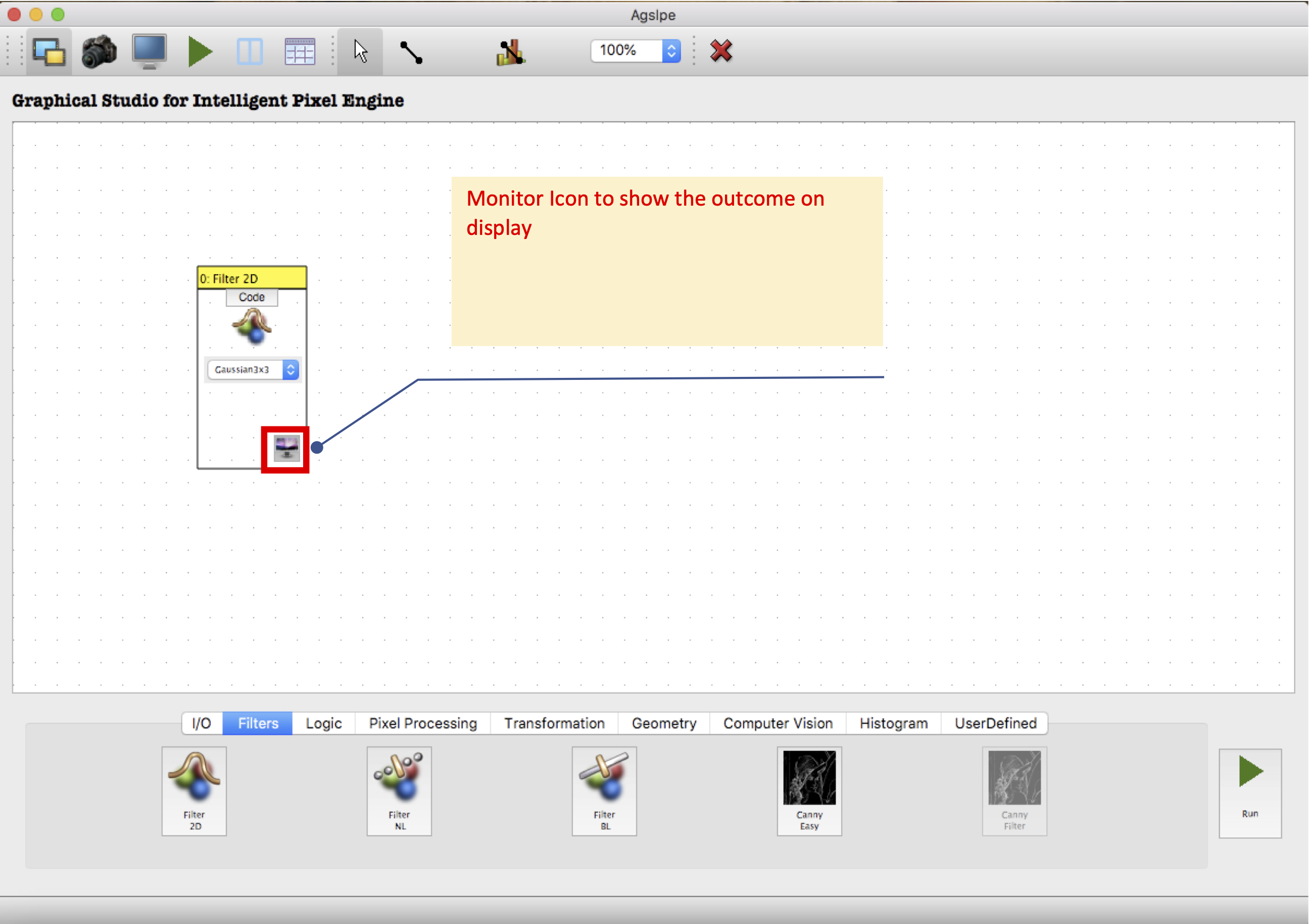

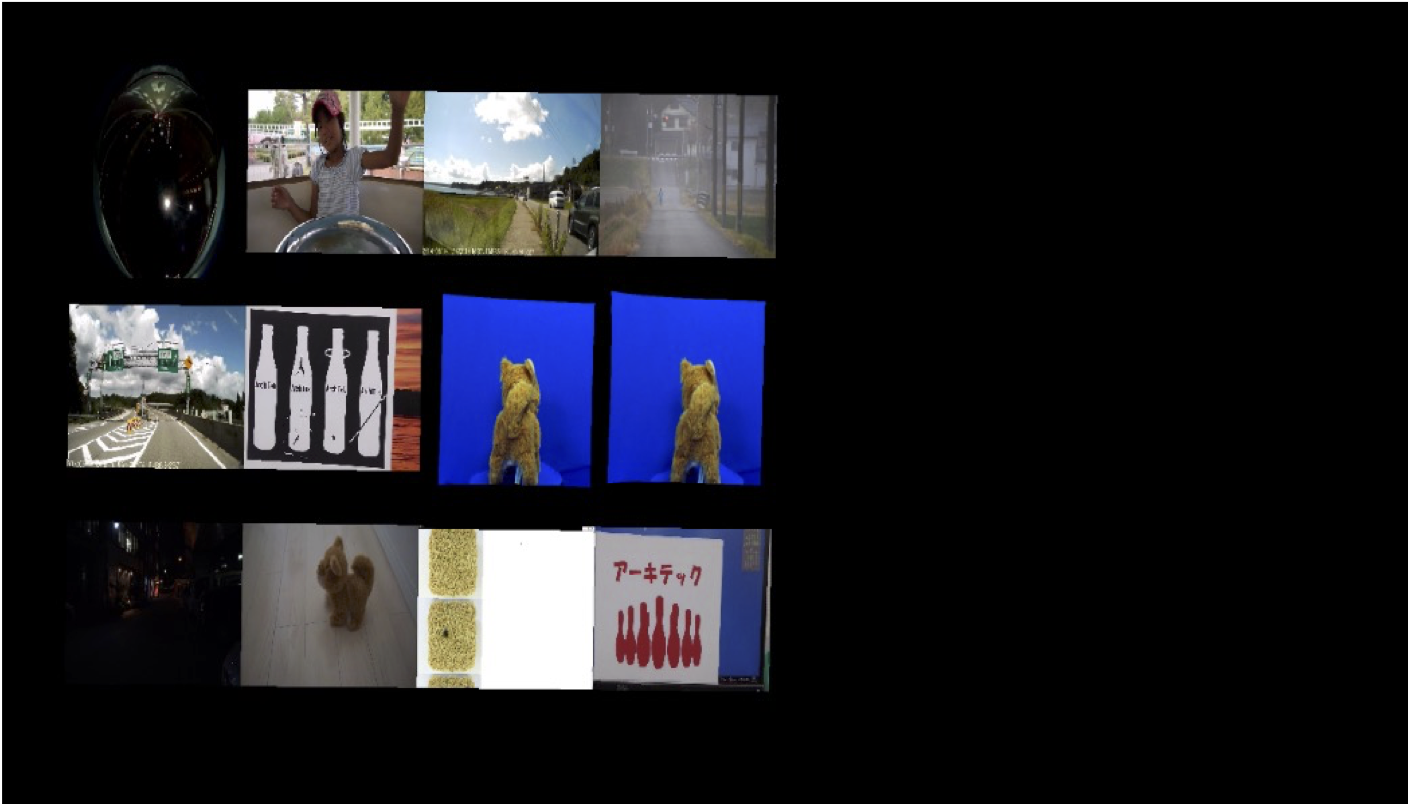

![]() | AGTCAiOnIc Display the outcome to monitor |
Result of Affine Transformation output to monitor
![]() | ![]() |
